DIPON Epoxyplast 3D B100 UltraPour 30 kg - Clear Epoxy Resin for the Production of Tables, Maximum Casting Thickness 10 cm

Code: 6481/030000

Not rated

Brand: DIPON

481,08 € –3 %

Epoxyplast 3D B100 - Křišťálově čirá epoxidová pryskyřice

DIPON Epoxyplast 3D B100 UltraPour 30 kg - Clear Epoxy Resin for the Production of Tables, Maximum Casting Thickness 10 cm

epoxyplast 3d b100 ultrapour resin ultra diamond clear anti uv epoxidharz i epoxy resin diponr 8

481,08 € –3 % 464,46 € 383,85 € excl. VAT 15,48 € / 1 kg

Delivery to: 20/02/2025 Delivery offer

Clear casting epoxy resin for large castings, casting thickness up to 10 cm (at max 20 °C), cures from 10 °C, hardness 81 SHORE D, VOC 0 g/L, mixing ratio by weight 2:1, full cure in 8 - 14 days

Technical data sheet

Detailed information

Show all related products

Product detailed description

DIPON EpoxyPlast 3D B100 Ultra Pour

EpoxyPlast 3D B100 Ultra Pour is a premium epoxy resin designed for applications requiring a maximum casting depth of up to 10 cm. Thanks to its low viscosity, it ensures excellent flow and the ability to reach even the smallest details. Ideal for furniture production, table casting, lamp design, and large-scale artistic projects.

This resin boasts a crystal-clear appearance, high gloss, and resistance to yellowing due to advanced UV protection technology with UV absorbers and HALS additives. Its eco-friendly formulation contains over 70% biodegradable components, contributing to sustainable creation. EpoxyPlast 3D B100 Ultra Pour is the key to perfect results in deep casting projects requiring precision, durability, and aesthetic excellence.

With a long working time of approximately 240 minutes at 23 °C, this resin is suitable for demanding projects requiring slow curing. This feature prevents overheating and allows the creation of smooth, bubble-free surfaces. The mixing ratio 2:1 by weight and the recommended layer thickness 3–10 cm make this resin an ideal material for professionals and creative makers.

DIPON Epoxyplast 3D B100 UltraPour 30 kg - Čirá epoxidová pryskyřice na výrobu stolů, maximální síla odlitku 10 cm

UV resistant

The unique formulation offers excellent UV resistance. Resistant to yellowing over time.

Solid castings up to 10 cm

It enables casting of massive castings up to 10 cm thick (at 20°C).

Processing time up to 3 hours

The long processing time of up to 3 hours provides sufficient time for mixing, pigmentation and de-bubbling of the mixture.

Cures at temperatures from 10 °C

It cures at low temperatures as low as 10 °C, which is appreciated by everyone, especially in the winter months, when heating production areas is costly.

General Characteristics

Stable formulation against crystallization
Very slow heat development during curing
Very long processing and curing time
Low viscosity for optimal flow
Contains UV absorbers and n-HALS light stabilizers
Ideal for large-volume casting, such as River Tables
High resistance to carbamates
Highly transparent glass-like hardness after curing
Excellent self-deaerating properties
Bio-based components in epoxy resin
Free from hazardous substances listed in CoRAP and sVHC
Latest base amines and additives with minimal yellowing
0 % VOC (EU values)
Exceptional wetting properties for various surfaces
Very low shrinkage (<0.1 %)
Compatible with wood, concrete, glass, metal, glass and carbon fibers, natural stone, quartz sand, marble, and granite

Key Application Data

Mixing ratio: 2:1 (A+B) by weight
Dynamic viscosity at 23 °C:
- Component A: 580 ± 50 mPa·s
- Component B: 55 ± 25 mPa·s
Layer thickness (20 °C): 30 - 100 mm
Processing time (23 °C, 500 grams, 90 mm): approx. 240 minutes
Maximum exothermic reaction (tTmax, 23 °C, 500 grams, 90 mm): approx. 480 minutes
Recommended material temperature A+B: min. 20 °C, recommended 23 °C
Recommended ambient temperature: min. 10 °C, recommended 12 °C - 19 °C
Recommended casting height (20 °C): 3 cm - 10 cm (30 - 100 mm)
Demoldable after (23 °C): approx. 96 hours (50 mm)
Next layer applicable after (20 °C): approx. 36 hours (50 mm)
Sandable after: approx. 10 days (80 mm, 20 °C)
Minimum mixing quantity (A+B): 120 grams
Minimum casting height: 3 cm (30 mm)
Hardness after 7 days (23 °C):Shore D81
Heat resistance: approx. 63 °C

Areas of Application

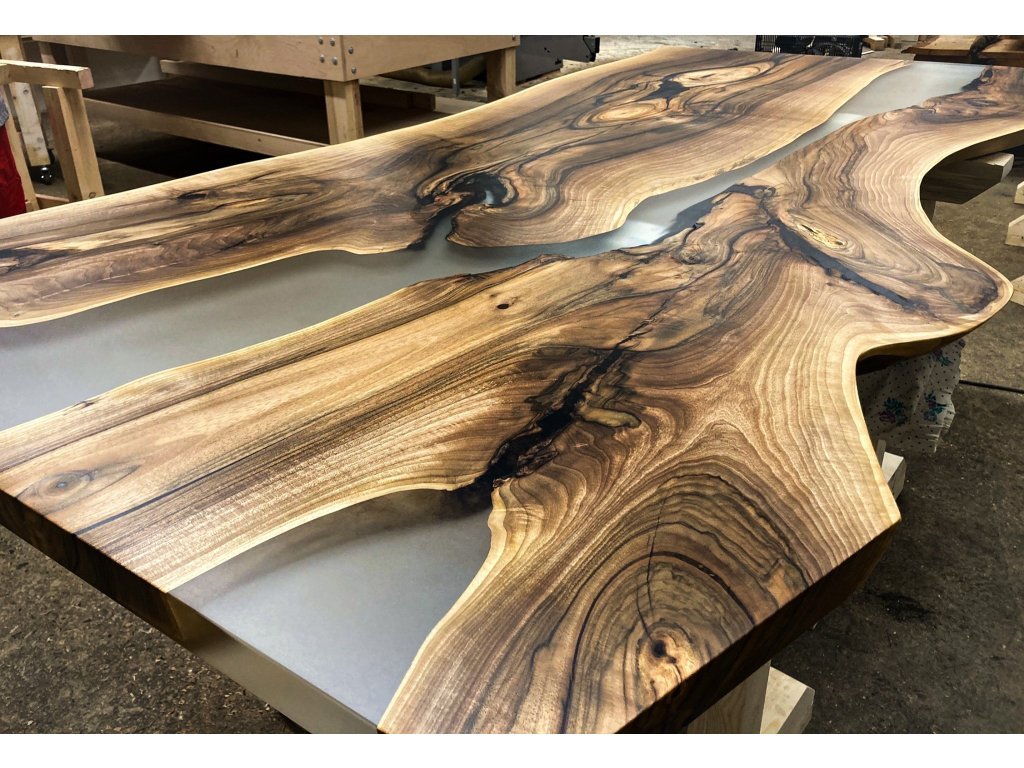

Ideal for large-scale projects: EpoxyPlast 3D B100 Ultra Pour is specifically designed for the creation of impressive River Tables and use in large silicone molds.
Excellent for furniture making: Allows casting heights from a minimum of 30 mm up to 100 mm at 20 °C.
Safe for food contact: The formulation is free from substances listed in sVHC or CoRAP. After complete curing, the product is suitable for contact with food.
Higher casting heights above 100 mm: Higher casting volumes are possible depending on the material quantity and ambient temperature, provided it is significantly below 20 °C.

What is EpoxyPlast 3D?

EpoxyPlast 3D was developed in 2019 as a self-venting system that is easy to use and covers a wide range of applications, especially in the artistic field.
Since its launch, it has become a popular choice among users, particularly EpoxyPlast 3D B20 Jewel Cast, which has been used by more than 100,000 users since 2019. Additionally, the well-known thick-film systems, such as EpoxyPlast 3D B50 Deep Pour and EpoxyPlast 3D B100 Ultra Pour – the first systems in Germany capable of casting up to 10 cm in depth – have also proven highly effective.
These epoxy systems have been applied hundreds of thousands of times with outstanding results, demonstrating their reliability and ability to create perfect surfaces for demanding projects.

Typ	Dyn. viskozita 23 °C (mPas)	**Zpracovatelnost: 200g, 23 °C - 40 °C	Max. síla odlitku	Použití	UV odolnost
EpoxyPlast 3D B20 Jewel Cast	800 ± 50	cca 55 min	0,1 mm - 20 mm	Art & Vložení	Excelentní
EpoxyPlast 3D B50 Deep Pour	75 ± 25	cca 180 min 500 gramů, 5cm**	20 mm - 50 mm	Zalévání silných odlitků	Excelentní
EpoxyPlast 3D B100 Ultra Pour	50 ± 25	cca 240 min 500 gramů, 9cm**	30 mm - 100 mm	Zalévání silných odlitků	Excelentní

*Dynamická viskozita se měří při 23°C. Snížení teploty materiálu je doprovázeno neúměrným zvýšením dyn. viskozity. To je eminentně důležité, zejména pokud jde o samoodvzdušňování.
**Doba zpracování je uvedena pro směs 200 gramů v mixovací nádobě (průměr 5 cm). Doba zpracování = teplota materiálu 23°C -> 40°C = zdvojnásobení počáteční viskozity. Čas na maximální exotermickou teplotu (tTmax) je obvykle dvojnásobkem doby zpracování.

EpoxyPlast 3D Složka A - epoxidová pryskyřice pro všechna tvrdila EpoxyPlast 3D - (580 mPa*s ± 50, 23°C)
EpoxyPlast 3D B20 Jewel Cast - Nízká viskozita, zpracovatelnost cca 55 min, pro drobné odlitky.
EpoxyPlast 3D B50 Deep Pour- Nízká viskozita, pro velké tlustovrstvé odlitky, např. pro říční stoly, výrobu lamp, větší odlitky v jednom lití.
EpoxyPlast 3D B100 Ultra Pour - Nízká viskozita, pro velmi velké tlustovrstvé odlitky, např. pro říční stoly, výrobu lamp.

Application and Usage

Check the ambient temperature, as it's the most critical parameter alongside the casting volume. Successful application depends on room temperature and the amount/volume of the resin and hardener mix used. An excessively high room temperature can lead to a very strong exothermic reaction, resulting in yellowing, cracking, and vapor formation in the mixture.
Before use, perform a preliminary test for material compatibility to be painted/poured.
The recommended procedure for the most accurate measurement of all components is by weight, precisely weighing in a 100:50 or 2:1 weight parts ratio based on component (A). Even a slight deviation results in extended or non-occurring hardening. Adding too much hardener increases the material's elasticity and decreases its SHORE D hardness. Excess of component A results in a permanently sticky film, non-reversible due to polyaddition. The maximum deviation in the tolerance range is 0.1%.
Adhere to the recommended mixing time of three to four minutes, then pour into a clean container and mix again for three to four minutes to achieve a maximally homogeneous mixture.
Use the mixing container only once. Follow the recommended maximum mixing speed for both components, which is 300 rpm, preventing or minimizing the formation of air pockets during mixing. Manual mixing is recommended for smaller quantities up to approx. 1 kg. Due to its extended work time, it degasses excellently. We recommend using Allway Tools Helix for mixing.
To prevent resin seepage due to the prolonged curing time, ensure complete sealing of the mold. Suitable for this is the DIPON polypropylene tape, which can be easily separated from the mold after hardening. Optionally, a release wax can be used.

Cleaning

For cleaning used applicators, use acetone or universal thinner. Once the epoxy resin hardens, it can only be removed by sanding. Cleaning immediately after use is recommended.

Important Note:

Mixing transport containers (bottles/cans) A (resin) and B (hardener) will result in incomplete hardening and the corresponding incorrect result. Always weigh both components precisely.
The higher the room temperature and the larger the mixed quantity, the faster the exothermic reaction.

Additional parameters

Category:	Epoxy Resins
Weight:	31.21 kg
? Processing time:	Long Time
? Epoxy System Type:	Epoxyplast 3D B100
Color:	Clear, Highly transparent
Package weight:	30 Kg
Max thicknesses:	10 cm
? UV Resistance:	Yes, Maximal
Type of use:	River Tables, Conference and side tables - middle, Dining and work tables - large, Serving / charcuterie boards, Lambs, Casting, Casting of Flowers
Casting Size:	Medium Casting, Bid Casting
? Viscosity:	Low - Thin
Poměr míchání / Mixing ratio:	2 : 1 (A +B) hmotnostně
Doba zpracovatelnosti / Processing time:	3 h
? Čas gelace:	12 - 24 h
? Suchý na dotek:	36 - 48 h
Doporučená okolní teplota / Recommended ambient temperature:	15 - 20 °C
? Hranice exhoterm:	38 °C
Brusitelný / Sandable (20 °C, 90 mm):	7 - 10 dní
? Doporučené plné vytvrzení:	10 - 14 dní
Smrštění / Shrinkage:	Nízké (<0.1 %)
? Teplotní odolnost:	55 °C
? Tvrdost:	79 SHORE D
Obsah VOC / VOC content:	0 %
? Viskozita:	225 CPS
Hustota:	1,06 g/cm3
