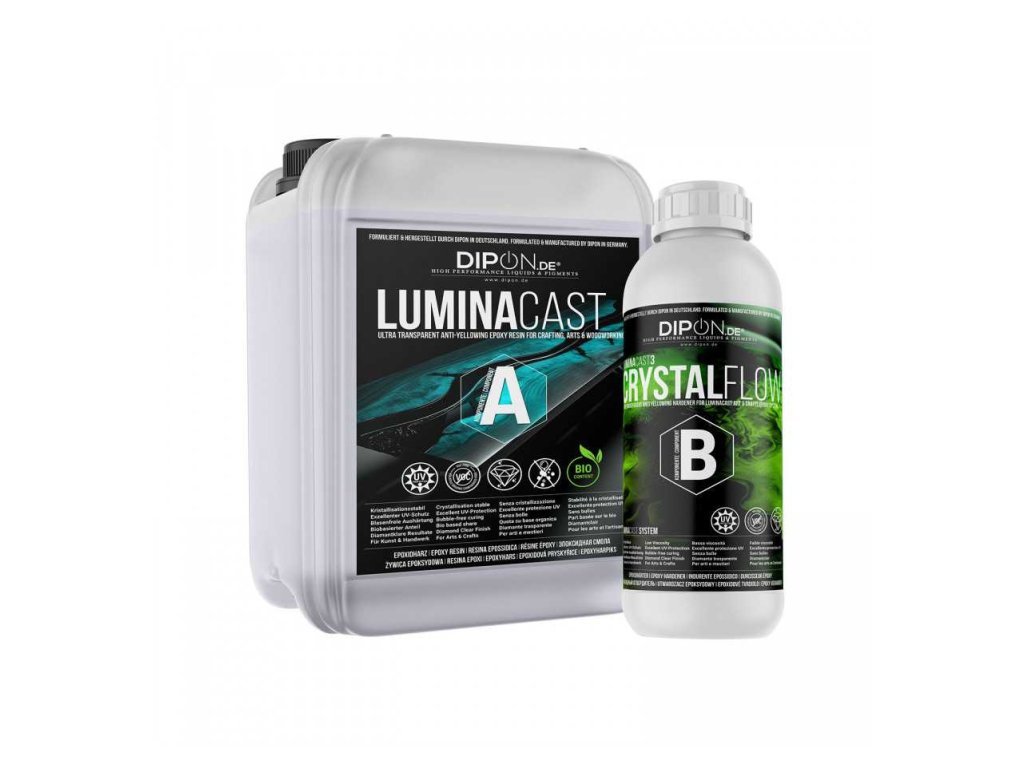

DIPON LuminaCast 3 Crystal Flow 30 kg - Ultra Low Viscosity Epoxy Resin, Thickness 10 mm

Code: 7300/030000

Not rated

DIPON LuminaCast 3 Crystal Flow 30 kg - Ultra Low Viscosity Epoxy Resin, Thickness 10 mm

452,92 € 374,31 € excl. VAT 15,10 € / 1 kg

Delivery to: 06/03/2025 Delivery offer

Clear casting epoxy resin with maximum UV protection, casting thickness 1 - 10 mm, workability approx. 35 min, particularly low viscosity (very liquid), safe for contact with food, mixing ratio 2:1 by weight.

Detailed information

Show all related products

Product detailed description

DIPON LuminaCast 3 Crystal Flow

DIPON LuminaCast 3 Crystal Flow is an epoxy resin with a particularly low viscosity for castings with a thickness of 1 - 10 mm, ideal for decorative highly transparent embeddings and molds. For example, for casting jewellery, trays, stylish trays or where excellent clarity and resistance to yellowing is required. It is also ideal for creating glass and carbon laminates and is perfectly suited for the production of stone carpets.

With a refractive index > 1.59, this product is among the most transparent epoxy resins on the market.

DIPON LuminaCast 3 Crystal Flow 30 kg - Obzvláště nízko viskózní epoxidová pryskyřice, tloušťka 10 mm

Maximum UV protection

The integration of UV absorbers and HALS additives ensures that LuminaCast perfectly protects your creations from yellowing and UV radiation damage.

Casting height up to 10 mm

Up to 10 mm (20°C) in a single pour, depending on the amount of material and ambient temperature.

Workability up to 35 mins

Extended workability provides ample time for mixing, pigmenting, and degassing the mixture (at 23°C, 200g, 10 mm).

Mixing ratio 2:1 by weight

Very easy mixing and calculation of the correct amount of individual components.

General Characteristics

Crystallization stable
Bio-based ingredients in the epoxy resin
Free from CoRAP and sVHC substances
State-of-the-art base amines and additives with particularly low yellowing tendencies
Mixing ratio: 2:1 by weight (A+B)
Pot life (23°C), 200 grams: approx. 35 min. (23°C- > 40°C)
Recommended material temperature (A+B): 20°- 24°C
Recommended ambient temperature: 20°C - 25°C
Dyn. Viscosity (mPa*s) 23°C: A 730 ± 50
Dyn. Viscosity (mPa*s) 23°C: B 140 ± 50
Diamond Clear transparency
Layer thickness (20°C): 1 - 10 mm
0% VOC content
Excellent substrate wetting capability
Very low shrinkage (<0.1%)
Compatible with, e.g., wood, concrete, glass, metal, glass and carbon fiber fabrics, natural stone, quartz sand, marble, granite

Key Application Data

Pot life at 23°C (200 grams, 5 mm): approx. 35 min.
Time to max exothermy (tTmax) (23°C, 200 grams, 10 mm): approx. 70 min.
Mixing duration: 3-4 min. + transfer and another 3-4 min for a uniform mixture
Mixing ratio: 2:1 by weight (A+B)
Recommended casting height (20°C): 0.1 cm - 1.0 cm (1 - 10 mm)
Demoldable after (23°C): approx. 16 - 24 hrs.
Next layer pourable after: approx. 8 - 12 hrs. at 20°C, 10 mm
Minimum recommended mixing amount: 90 grams A+B

Additional parameters

Category:	Epoxy Resins
Weight:	31.24 kg
? Processing time:	Short time
? Epoxy System Type:	LuminaCast 3
Color:	Clear, Highly transparent
Package weight:	30 Kg
Refractive index:	> 1,59
Kontakt s potravinami:	Yes
Max thicknesses:	1 cm
? UV Resistance:	Yes, Maximal
? Temperature resistance:	70 °C
? Hardness:	72 ShD
Type of use:	Jewelry production, Jewelry using silicone molds, Coasters, Casting, Lamination, Glass and Carbon Laminates, Stone Carpets
Casting Size:	Small Casting
? Viscosity:	Especially low - thick
