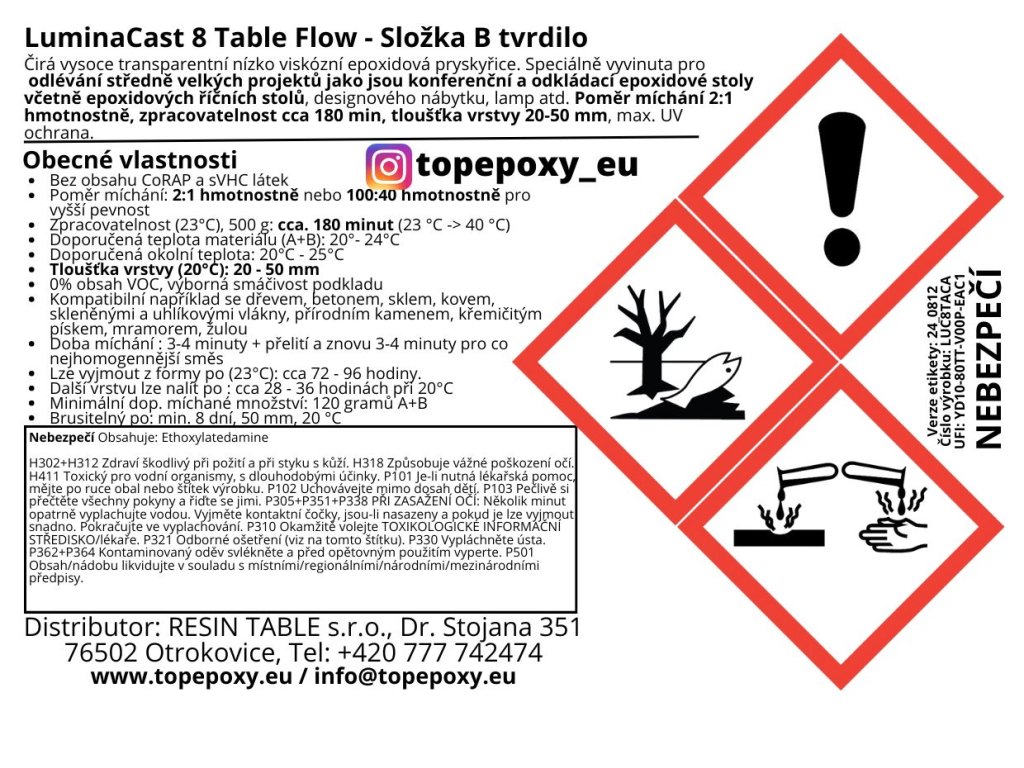

DIPON LuminaCast 8 Table Flow 15 kg - Low Viscosity Epoxy Resin, Thickness 5 cm

Code: 7257/015000
New
Brand: DIPON
245,83 € 203,17 € excl. VAT 16,39 € / 1 kg
IN STOCK (>5 pcs)
Delivery to:
25/11/2024
Delivery offer

Detailed information

Product detailed description

DIPON LuminaCast 8 Table Flow

LuminaCast 8 Table Flow is a low viscosity clear epoxy resin that boasts high transparency. This casting epoxy resin has been specially developed for casting medium-sized projects such as conference and side tables, including epoxy river tables, designer furniture, lamps and more.

Are you looking for a quality epoxy resin with a long shelf life? LuminaCast 9 Table Flow will offer you the possibility of casting up to 5 cm thick layers in one step. With a refractive index > 1.59, this product is among the most transparent epoxy resins on the market.

DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

Key features of LuminaCast 8 Table Flow

  • Mixing ratio 2:1 by weight (or 100:40 by weight for higher strength)
  • Casting height up to 5 cm and a long processing time of up to 180 minutes, depending on the quantity and ambient temperature.
  • Optimized for furniture manufacturers such as casting tables, making lamps or jewelry, where a larger casting height is required.
  • Demoulding possible after 72 - 96 hours (23 °C).
  • Sandable after min. 8 days (20 °C).
  • It creates an incomparably smooth and shiny surface.
  • The advanced formulation minimizes carbamate formation and ensures a flawless, blemish-free finish.
DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

Maximum UV protection

The integration of UV absorbers and HALS additives ensures that LuminaCast perfectly protects your creations from yellowing and UV radiation damage.
DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

Casting height up to 5 cm

Up to 5 cm (20°C) in a single pour, depending on the amount of material and ambient temperature.
DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

Workability up to 3 hours

Extended workability provides ample time for mixing, pigmenting, and degassing the mixture (at 23°C, 500g, 50mm).
DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

Mixing ratio 2:1 by weight

For higher strength, it can be mixed in a ratio of 100:40 by weight.
<!-- icon -->

High-quality epoxy resin for River Tables

LuminaCast 8 Table Flow is specially designed for making impressive River Tables and for use in large silicone molds. It allows a watering height of up to 50 mm at 20 °C. Note that higher casting heights are possible depending on room temperature and amount of material provided it is below 20°C.

General Characteristics

  • Crystallization stable
  • Bio-based ingredients in the epoxy resin
  • Free from CoRAP and sVHC substances
  • State-of-the-art base amines and additives with particularly low yellowing tendencies
  • Mixing ratio: 2:1 by weight or 100:40 by weight for higher strength
  • Pot life (23°C), 500 grams, 5 cm: approx. 180 min. (23°C- > 40°C)
  • Recommended material temperature (A+B): 20°- 24°C
  • Recommended ambient temperature: 15°C - 20°C
  • Dyn. Viscosity (mPa*s) 23°C: A 730 ± 50
  • Dyn. Viscosity (mPa*s) 23°C: B 70 ± 25
  • Diamond Clear transparency
  • Layer thickness (23°C): 20 - 50 mm
  • 0% VOC content
  • Excellent substrate wetting capability
  • Very low shrinkage (<0.1%)
  • Compatible with, e.g., wood, concrete, glass, metal, glass and carbon fiber fabrics, natural stone, quartz sand, marble, granite

Key Application Data

  • Pot life at 23°C (500 grams, 90 mm): approx. 180 min.
  • Time to max exothermy (tTmax) (23°C, 500 grams, 90 mm): approx. 360 min.
  • Mixing duration: 3-4 min. + transfer and another 3-4 min for a uniform mixture
  • Mixing ratio: 2:1 by weight or 100:40 by weight for higher strength
  • Recommended casting height (20°C): 2.0 cm - 5.0 cm (20 - 50 mm)
  • Demoldable after (23°C): approx. 72 - 96 hrs.
  • Next layer pourable after: approx. 28 - 36 hrs. at 20°C, 50 mm
  • Minimum recommended mixing amount:  120 grams A+B
  • Sandable after: min. 8 days, 50 mm, 20°C

How to use

Application and Usage

  • Check the ambient temperature, as it's the most critical parameter alongside the casting volume. Successful application depends on room temperature and the amount/volume of the resin and hardener mix used. An excessively high room temperature can lead to a very strong exothermic reaction, resulting in yellowing, cracking, and vapor formation in the mixture.
  • Before use, perform a preliminary test for material compatibility to be painted/poured.
  • The recommended procedure for the most accurate measurement of all components is by weight, precisely weighing in a 100:50 or 2:1 weight parts ratio based on component (A). Even a slight deviation results in extended or non-occurring hardening. Adding too much hardener increases the material's elasticity and decreases its SHORE D hardness. Excess of component A results in a permanently sticky film, non-reversible due to polyaddition. The maximum deviation in the tolerance range is 0.1%.
  • Adhere to the recommended mixing time of three to four minutes, then pour into a clean container and mix again for three to four minutes to achieve a maximally homogeneous mixture.
  • Use the mixing container only once. Follow the recommended maximum mixing speed for both components, which is 300 rpm, preventing or minimizing the formation of air pockets during mixing. Manual mixing is recommended for smaller quantities up to approx. 1 kg. Due to its extended work time, it degasses excellently. We recommend using Allway Tools Helix for mixing.
  • To prevent resin seepage due to the prolonged curing time, ensure complete sealing of the mold. Suitable for this is the DIPON polypropylene tape, which can be easily separated from the mold after hardening. Optionally, a release wax can be used.

Cleaning

  • For cleaning used applicators, use acetone or universal thinner. Once the epoxy resin hardens, it can only be removed by sanding. Cleaning immediately after use is recommended.

Important Note:

  • Mixing transport containers (bottles/cans) A (resin) and B (hardener) will result in incomplete hardening and the corresponding incorrect result. Always weigh both components precisely.
  • The higher the room temperature and the larger the mixed quantity, the faster the exothermic reaction.

Recommended minimum mixed amount 90 grams

*If the amount of mixture falls below the minimum of 90 grams, the curing time may be extended. It is also possible to create a mass that is not completely homogeneous and the exothermic reaction is too low to completely harden the workpiece. The recommended minimum amount of mixture is 90 grams (A 60 grams + B 30 grams), the recommended amount is 120 grams (80 grams A + 40 grams B).
DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

Food-safe?

The formula contains no substances of SVHC or CoRAP. After complete chemical curing, approximately 14 days at 25°C, the product is suitable for food contact.

What is LuminaCast?

  • LuminaCast epoxy resin was developed with the aim of creating an unrivaled clear, UV-stabilized, and self-degassing system that's easy to use and covers the widest possible range of applications, particularly in the arts and crafts sector.
  • Special attention was given to achieving the highest possible carbamate resistance in all formulations by using the latest raw materials and adding hydrophobic additives. Additionally, besides the most up-to-date UV absorbers and light stabilizers, this system employs only slightly yellowing base amines in the hardener and especially UV-resistant additives. LuminaCast is designed for every application in the decorative sector, be it basic coatings, trays, furniture, or large volume casting.
  • With one resin and ten hardeners, you have maximum flexibility and can unleash your creative side!
DIPON LuminaCast 8 Table Cast 15 kg - Nízko viskózní epoxidová pryskyřice, tloušťka 5 cm

LuminaCast (A Component: 730 ± 50 mPa*s, 23°C) consists of ten hardeners and one epoxy

Type
*Dyn. Viscosity
23 °C (mPa*s)
**Proseccing time:
200g, 23 °C - 40 °C
Rec. Max. layer thickness
Purpose of use
UV protection
LuminaCast 1 Fast Set Primer
120 ± 50
cca 15 min
0,1 mm - 7 mm
Pre-treatment & priming
Excellent
LuminaCast 2 Coaster Cast
290 ± 50
cca 40 min
0,1 mm - 15 mm
Highly transparent embeddings
Excellent
LuminaCast 3 Crystal Flow
140 ± 50
cca 35 min
0,1 mm - 10 mm
Laminations & Art
Excellent
LuminaCast 4 Gem Flow
890 ± 50
cca 55 min
0,1 mm - 20 mm
Art & Embeddings
Excellent
LuminaCast 5 Radiant Flow
1330 ± 50
cca 60 min
0,1 mm - 20 mm
Art & Embeddings
Excellent
LuminaCast 6 Art Flow
4100 ± 50
cca 45 min
0,1 mm - 20 mm
Art & Embeddings
Excellent
LuminaCast 7 Design Flow
5500 ± 50
cca 50 min
0,1 mm - 20 mm
Art & Embeddings
Excellent
LuminaCast 8 Table Flow
70 ± 50
cca 180 min **500 grams, 9cm
20 mm - 50 mm
Thick film potting
Excellent
LuminaCast 9 Ocean Flow
50 ± 50
cca 240 min **500 grams, 9cm
30 mm - 100 mm
Thick film potting
Excellent
LuminaCast 10 Cell Flow
2500 ± 50
cca 50 min
0,1 mm - 20 mm
Art & Embeddings
Excellent

*Dynamic viscosity is measured at 23°C. A reduction in the material temperature is accompanied by a disproportionate increase in dyn. Viscosity. This is eminently important, especially when it comes to self-venting. Example. Viscosity Material temperature 23°C. 730 mPa*s, at 10°C Material temperature: approx. 10,000 mPa*s.
**The processing time is given for a mixture of 200 grams in a mixing cup (diameter 5 cm). Processing time = material temperature 23°C -> 40°C = doubling of the initial viscosity. The time to the max. exothermic temperature (tTMax) is usually twice the time of the prosecuting time.

  • LuminaCast 1 Fast Set Primer - Low viscosity, pot life, approx. 15 min., can be poured over after 60 - 120 min., ideal as primer / sealer for porous substrates such as wood
  • LuminaCast 2 Coaster Cast - Low viscosity, pot life approx. 40 min. ideal for decorative highly transparent embeddings and molds
  • LuminaCast 3 Crystal Flow - Especially low viscosity, pot life approx. 35 min. ideal for decorative highly transparent embeddings and molds
  • LuminaCast 4 Gem Flow Flow - Low viscosity, pot life approx. 55 min. e.g. for resin art with a higher viscosity, comparable to B20 JewelCast only more viscous
  • LuminaCast 5 Radiant Flow - Medium viscosity, pot life approx. 60 min. a.o. like LuminaCast 4 GemFlow, somewhat slower and slower flow properties due to higher viscosity
  • LuminaCast 6 Art Flow - High viscosity, pot life approx. 45 min. for painting techniques, resin art, worktops, sealers, similar to HoneyResin
  • LuminaCast 7 Design Flow - High viscosity, pot life approx. 50 min. Special flow properties due to actuator, similar to LuminaCast 6 ArtFlow, perceived thinner
  • LuminaCast 8 Table Flow - Low viscosity, pot life approx. 180 min. for large thick film castings e.g. for river tables, lamp production, larger castings in one casting
  • LuminaCast 9 Ocean Flow - Low viscosity, pot life approx. 240 min. for very large thick film castings e.g. for river tables, lamp production
  • LuminaCast 10 Cell Flow - Medium viscosity, pot life approx. 50 min. for cell effects, Petri Art, flower patterns, Resin Art, table tops, sealers etc.

Additional parameters

Category: Epoxy Resins
Weight: 15.64 kg
? Processing time: Long Time
? Epoxy System Type: LuminaCast 8
Color: Clear, Highly transparent
Package weight: 15 Kg
Refractive index: > 1,59
Kontakt s potravinami: Yes
Max thicknesses: 5 cm
? UV Resistance: Yes, Maximal
? Temperature resistance: 70 °C
? Hardness: 72 ShD
Type of use: River Tables, Conference and side tables - middle, Serving / charcuterie boards, Lambs, Casting, Casting of Flowers
Casting Size: Medium Casting
? Viscosity: Low - Thin
5
2x
4
0x
3
0x
2
0x
1
0x
Do not fill out this field:
5
ŠM Avatar of author | 20/04/2024
Velká spokojenost
5
ON Avatar of author | 26/01/2024
Koupil jsem již podruhé a dobrý.

Be the first who will post an article to this item!

Do not fill out this field:
